W-DMX Wireless DMX R-512 Outdoor Receiver 512Ch

R-512

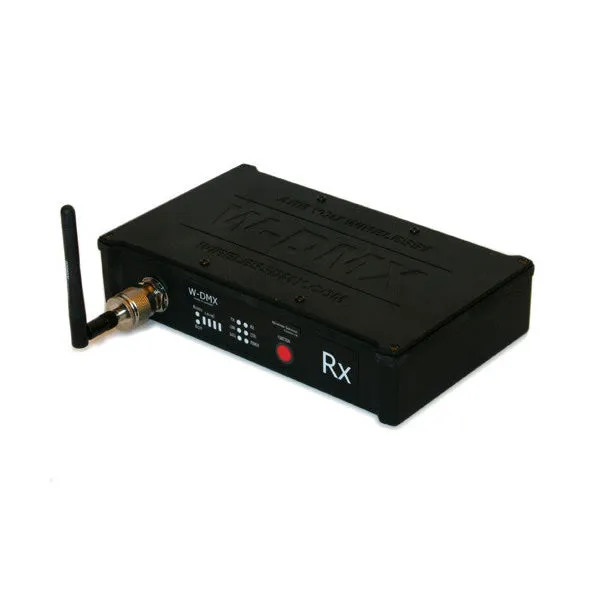

W-DMX BlackBox R-512 is a small and compact receiver

The W-DMX BlackBox R-512 is a 512-channel plug-and-play receiver that is compatible with the rest of the W-DMX product line. The receiver is easily
controlled by a single function switch, and the status of the radio link is indicated by a multi-colored LED.
A W-DMX is up and running in less then 60 seconds.
Coverage with standard antennas is 1000m line of sight, with high gain antenna coverage as far as up to 30km is possible

DMX Interface
• Maximum number of transceivers on a single bus: 128
• Maximum Data Rate (1): 250 kbps
• ESD (2) protection, human body model: (-)5 kV

AC Power Characteristics
• Average peak current consumption, 1 percent duration (3): 300 mA
• Maximum peak current consumption, 1 percent duration: 320 mA

RF Characteristics
• Minimum RF output power: 18 dBm or 63 mW (ETSI) / 22 dBm or 160 mW (FCC)
• Average RF output power: 19 dBm or 79 mW (ETSI) / 23 dBm or 200 mW (FCC)
• Maximum RF output power: 20 dBm or 100 mW (ETSI) / 24 dBm or 250 mW (FCC)
• Channel bandwidth: 1 MHz
• Sensitivity at 0.1 percent BER (4): 94 dBm
• FSPL (5) Link range with 5dBi external antenna (6): 3232 m
• When in idle mode, the W-DMX is in high impedance mode and listens for data on the DMX512 line.
