PRODUCT CODE : PMP242306000

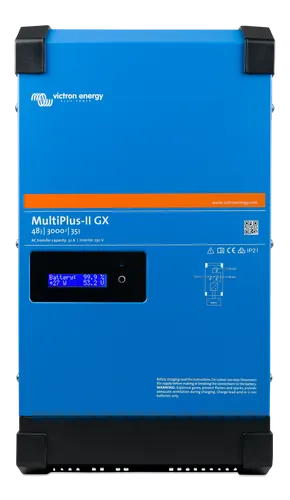

Note: 48V unit pictured for demonstration purposes.

A Multiplus II With LCD And GX Functionality

A Multiplus II GX integrates a Multiplus II and GX device with a 2 x 16 character display.

Display And Wifi

The display reads battery, inverter, and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device.

GX Device

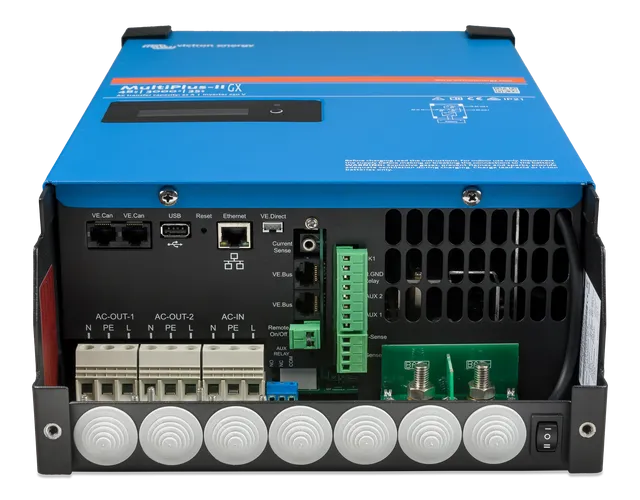

The GX integrated device includes:

• A BMS-Can interface. (This can be used to connect to a compatible CAN-bus managed battery. Note that this not a
VE.Can compatible port.)

• A USB Port

• An Ethernet Port

• A VE.Direct Port

Applications

The Multiplus II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel And Three Phase Operation

Only one GX unit is needed in case of parallel and three phase operation.

 Weight: 19kg

Dimensions: 506mm (H) x 275mm (W) x 147mm (D)
