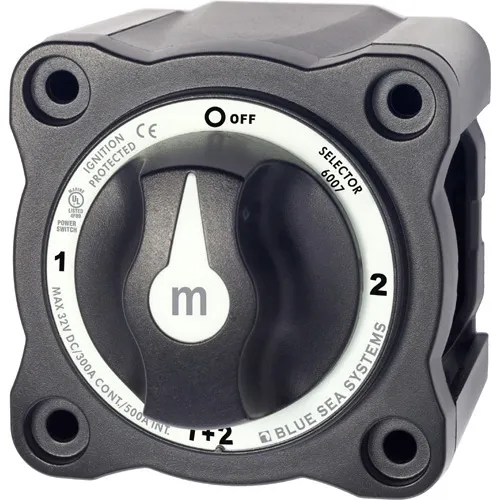

Switches isolated battery banks to all loads or combines battery banks to all loads

Make before break contact design allows switching between battery banks without power interruption

Specifications:
Switch Type:Selector 4 Position
Color: Black
Switch Positions: 4
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Cranking Rating 30 sec: 900A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm≤)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8" - 16 (M10)
Weight: 0.77lb (0.35 kg)
