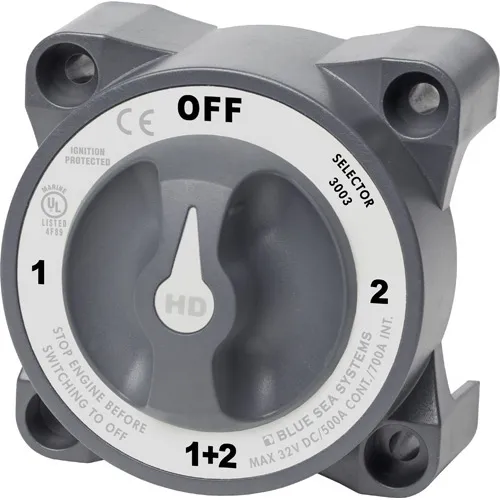

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected-safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm≤) battery cables

  Specifications:
  Switch Type: Selector 4 Position
  Color: Grey
  Switch Positions: 4
  Battery Combine: Yes
  Alternator Field Disconnect: No
  Maximum Voltage: 32V DC
  Terminal Stud Torque: 220 in-lb (24.86 Nm)
  Continuous Rating: 500A
  Intermittent Rating: 700A (5 min)
  Cranking Rating: 30 sec 1600A
  Battery Inputs: 2
  Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  Cable Quantity to Meet Ratings: Two Cables / Terminal
  Cable Size to Meet Ratings: 4/0 AWG (120mm≤)
  Mounting Holes: Accept 1/4" (M6) Screw
  Terminal Stud Size: 1/2" (M12)
  Weight: 1.25lb (0.57 kg)
